Specifications:

• 7Guard band rejection: GSM(BW-60dB) 42 MHz (BW-70dB) 45 MHz
• Ambient temperature: -10~50
• Certification: None
• Color: Silver
• Frequency range: Up link GSM 890-915
• Gain adjustable range: MGC 30dB
• Gain(dB) GSM Up link: 55 ± 10
• GSM Downlink: 60 ± 10
• I/O impedance: 50/N Connector
• I/O return loss: ≤-10dB
• Intermodulation attenuation (Po=13dBm): ≥40dBc
• Material: alloy
• Model: GSM 900MHz
• Noise igure: ≤-8dB
• Origin: CN(Origin)
• Output power(dBm): 20
• Pass band ripple GSM: 4dB
• Power supply: AC110/220V

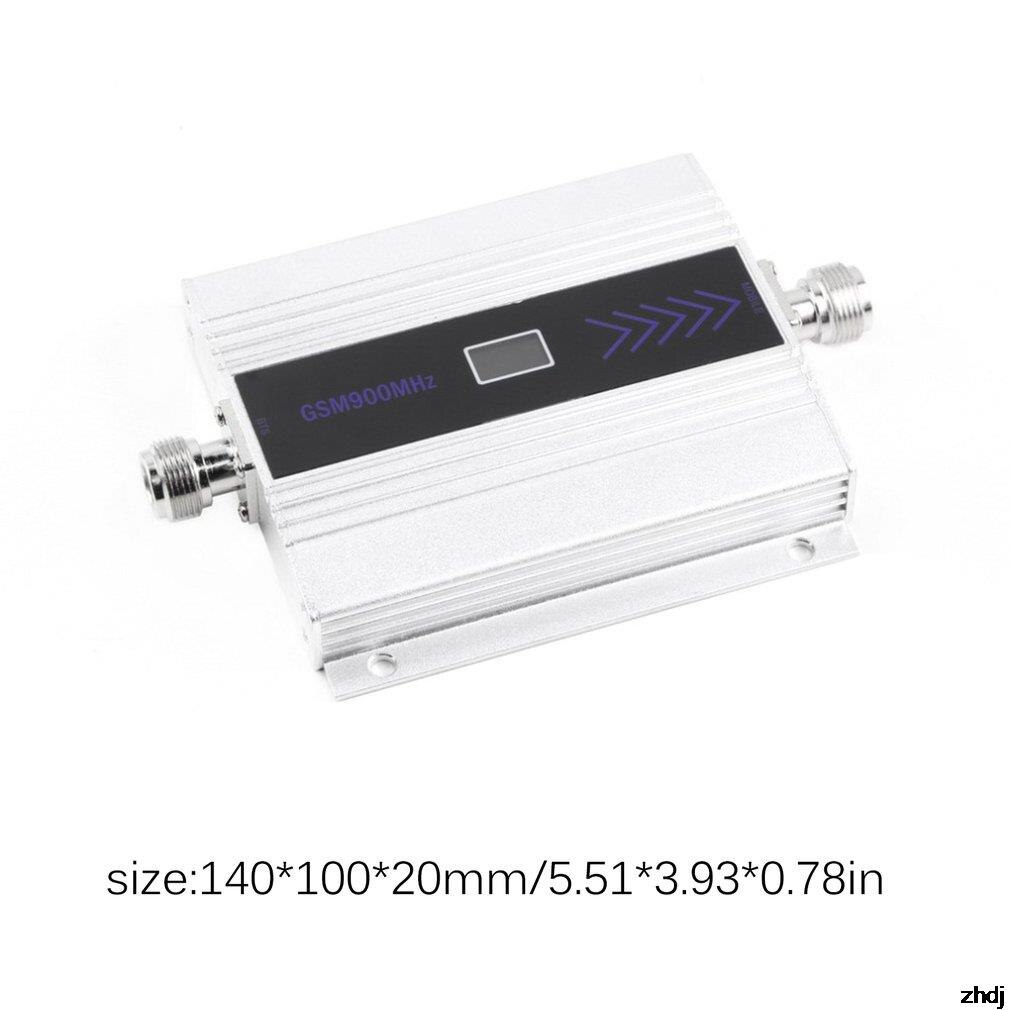

• Size: 140*100*20mm
• Transmission Delay: ≤0.5us
