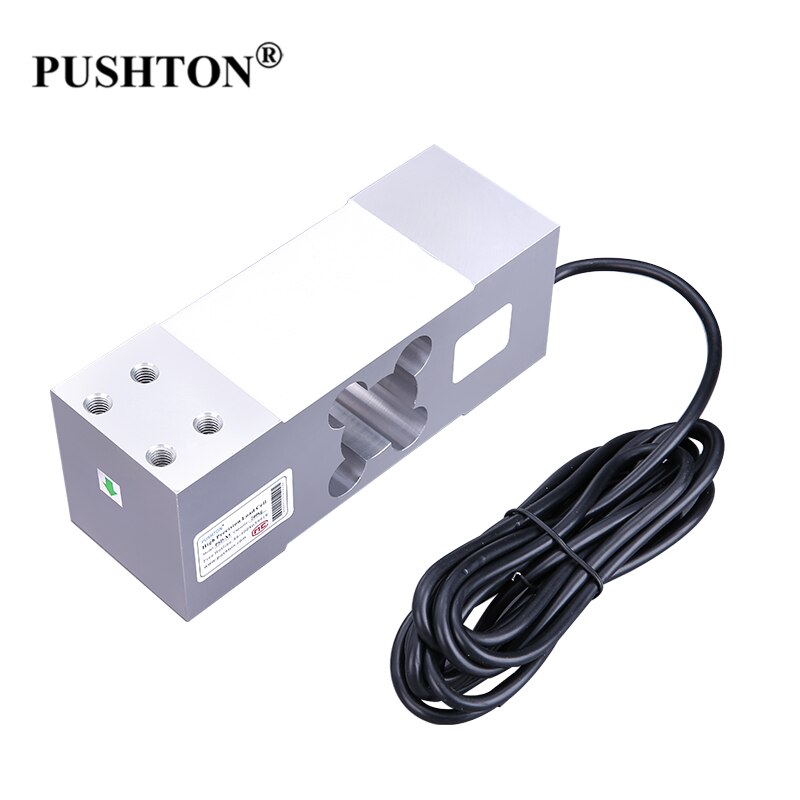

PSD-X5 Shear Beam Weighing Load Cell 100/200/500/750kg For Electronic Belt Conveyor Scale
PSD-X5 Shear Beam Weighing Load Cell 100/200/500/750kg For Electronic Belt Conveyor Scale
PSD-X5 Shear Beam Weighing Load Cell 100/200/500/750kg For Electronic Belt Conveyor Scale
PSD-X5 Shear Beam Weighing Load Cell 100/200/500/750kg For Electronic Belt Conveyor Scale
PSD-X5 Shear Beam Weighing Load Cell 100/200/500/750kg For Electronic Belt Conveyor Scale
PSD-X5 Shear Beam Weighing Load Cell 100/200/500/750kg For Electronic Belt Conveyor Scale

PSD-X5 Shear Beam Weighing Load Cell 100/200/500/750kg For Electronic Belt Conveyor Scale

SKU: AC-YQWL6YY5DJ3

Price

A$259.89

Free shipping

MSRP:A$306.69
15%
discount

Your selection:

500KG

Advantages

  • Free shipping
  • 100 days returns
  • Low prices

PSD-X5 Shear Beam Weighing Load Cell 100/200/500/750kg For Electronic Belt Conveyor Scale

Specifications:

  • Accuracy Class: C2
  • Brand Name: PUSHTON
  • Capacity: 100/200/500/750KG
  • Certification: CE
  • Certification: RoHS
  • Creep In 30 Minutes: 0.02%F.S
  • Environmental Protection: IP67
  • Excitation Voltage: 9-12DC
  • Hysteresis: 0.03%F.S
  • Input Resistance: 400±10Ω
  • Material: Aluminium Alloy
  • Maximum Excitation Voltage: 15V AC/DC
  • Model Number: PSD-X5
  • Non-linearity: 0.03%F.S
  • Origin: CN(Origin)
  • Output: Analog Signal
  • Output Resistance: 350±3Ω
  • Power Supply: 5-15V
  • Rated Load: 750kg
  • Rated Output: 2.0±0.004mv/v
  • Safe Overload: 150%F.S
  • Temperature Effect Span: 0.015%F.S/10℃
  • Type: LoadCell
  • Type: Shear Beam Load Cell
  • Ultimate Overload: 300%F.S
  • Zero Balance: ±1%F.S
  • Is Smart Device: No
